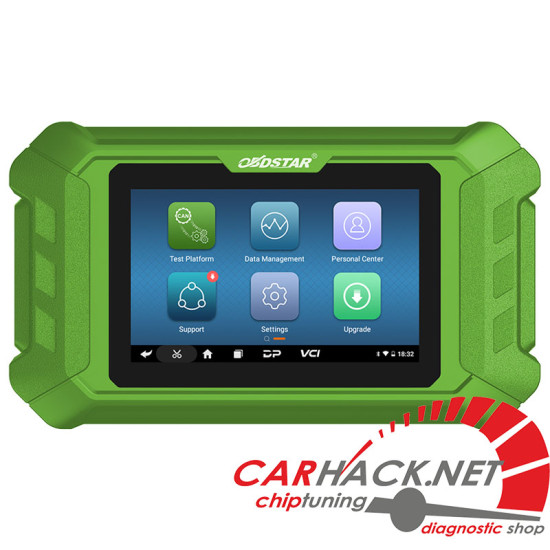

OBDSTAR MT501 Test Platform for Fuel Vehicle Dashboard Airbag Gear Lever A/C by BENCH 2 Years Free Update

MT501 is an automotive test platform by BENCH newly developed by OBDSTAR, which is multi-function in one, including dashboard power on, ABS power on, gear lever power on, A/C(air conditioning) panel power on and more.

It adopts latest 3.0 APK operating platform, is a good helper for automotive maintenance technicians.

Development Background:

Nowadays, many dashboards, audio, gear levers on cars are powered on through CAN BUS communication to make their hosts working. So their hosts fail to be powered on when technicians repair or detect them on the platform due to without CANBUS communication.

Therefore, OBDSTAR developed MT501 to make them powering on without CANBUS communication on the platform. Meanwhile, it integrated multifunction in one making repairing easier and saving a big cost for technicians.

Functions:

1. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

2. Wi-Fi connection to the internet, one-click software upgrade;

3. Intelligent search, with help guide, easy to use.

Advanced Functions:

1. Support dashboard power on for below brands:

AUDI

BMW

BENZ

DODGE

FORD

JAGUAR

LAMBORGHINI

LAND ROVER

PORSCHE

ROLLS-ROYCE

VOLKSWAGEN

VOLVO

2. Support BMW G series A/C panel power on

3. Support LAND ROVER/JAGUAR gear lever power on

4. Support BENZ ABS power on

More power on functions are under development...

Operation system: Android 5.1.1

CPU: RK3128 quad-core ARM cortex A7

Battery: 2600mA, rechargeable polymer lithium battery

Extension memory card: 32G micro SD (TF) card supported

LCD 5.0 inch

LCD resolution: 800*480

Touch screen: Capacitive touch screen

Wifi: Supported

Working temperature: -20℃55℃ (14℉131℉)

Storage temperature: -20℃70℃ (-4℉158℉)

Weight: About 700g

Dimension: 198mm*115mm*31mm
