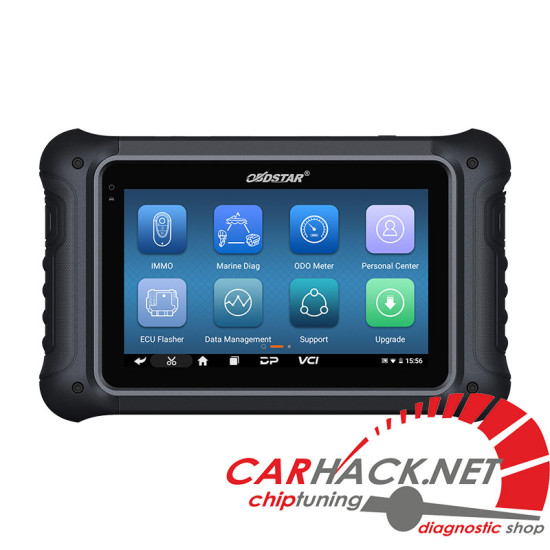

OBDSTAR D700 – Intelligent Diagnostic Tool for Marine Vehicles (Jet Skis and Outboard Engines)

D700 is OBDSTAR's new generation device of marine (jet ski/ outboard) intelligent diagnostic. Based on Rexchip microprocessor, it is equipped with a 7-inch display screen, which is extremely fast and smooth. D700 adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The D700 marine scanner, with its fast upgrade performace and built-in help materials, is a good helper for marine maintenance engineers!

Functions:

1. Adopting the new Android system, smooth operation;

2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

3. Provide complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding, read working hours etc;

4. Record and play back real-time flow, quickly and accurately locate sensor and component faults;

5. Wi-Fi connection to the internet, one-click software upgrade;

6. One-click remote function, OBDSTAR technical staff remote assistance.

Advanced Function:

1. The OBDSTAR mobile APP integrates functions such as diag socket location(DLC), flash code query, technical bulletin, manual service lamp reset, parameters, etc., which helps you diagnose accurately and efficiently together with D700 (free access for D700/D800 users only);

2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to analyze faults easily;

3. Supports Auto Scan, Number of stations, Lever Adapt, Setting of the foot throttle, Active Trim Configuration, Auxiliary Joystick Configuration, Instrumentation configuration, Compass Configuration, Drive Alignment, Helm Setup, TDS Reset, Set Tilt Limit, SMUX Configuration, Trackpad Configuration, Key programming,  Maintenance Notification Setting, Idle adjustment and other functions.

It has below two configurations:

A: Jet ski    B: Outboard

D700 A (Mainly for Jetski), supported brands as: SEA-DOO (BRP), HONDA, KAWASAKI, YAMAHA.

D700 B (Mainly for Outboard), supported brands as: EVINRUDE, HIDEA, HONDA, JOHNSON, MARINER, MERCURY, PARSUN, SELVA, SEVEN, SUZUKI, TOHATSU, YAMAHA.

More details, please check the software configurations in 'Specifications' and the coverages in 'Function Manual'.

Operation system: Android

CPU: RK3128 quad-core

Battery: 3700mA, rechargeable polymer lithium battery

Extension memory card: 32G micro SD (TF) card supported

Storage capacity: 16GB

LCD: 7.0 inch

LCD resolution: 1024*600

Touch screen: Capacitive touch screen

Wifi Supported

Working temperature: -20℃55℃ (14℉131℉)

Storage temperature: -20℃70℃ (-4℉158℉)

Weight: About 0.766kg

Dimension: 243mm*148mm*36mm
