Access to the data in the electronic control unit (ECU) is essential for diagnostics, repair, and optimization of engine performance. With the development of ECU systems, the methods for communicating with them have also evolved - from classic diagnostics via the OBD port to more professional techniques such as Bench and Boot mode.

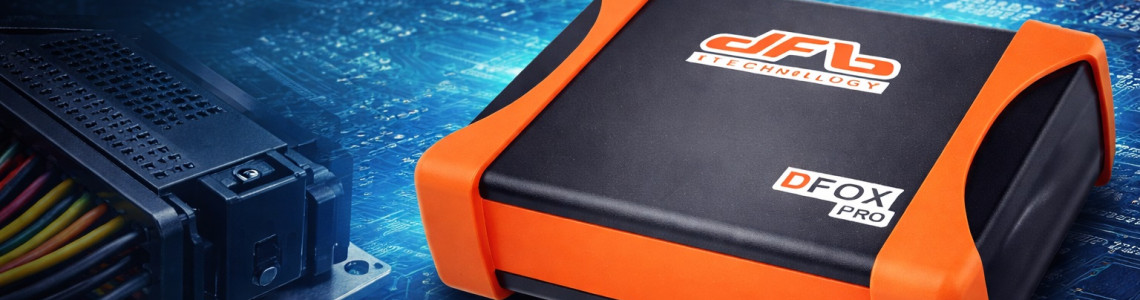

One of the tools that offers stable and safe operation in this type of environment is DFOX - a professional device for reading, writing, and programming ECUs. When used in Bench mode, DFOX allows direct communication with the control unit without the need to open it, which significantly facilitates workshop operations and reduces the risk of physical damage.

This technology has become a preferred choice for many specialists in chip tuning, diagnostics, and ECU programming, as it combines speed, safety, and high functionality.

What is Bench mode in ECU diagnostics

Bench mode is a method of communication with the ECU in which the unit is connected outside the vehicle or directly through its connector, without disassembling the housing.

In this mode, power supply and communication wires are used, which are connected to specific pins of the ECU connector according to the particular control unit model. For each ECU type, there are detailed pinout diagrams and connection instructions that ensure proper and safe operation.

The main advantage of this approach is that it eliminates the need to open the unit. In the traditional Boot mode, physical access to the board is often required, which increases the risk of:

  • damage to electronic components
  • compromising the sealing of the housing
  • moisture or contamination ingress
  • mechanical damage to the board

Bench mode solves these problems by providing full access to the ECU software content through the external connector.

How DFOX works in Bench mode

DFOX uses an intelligent communication system that enables reading and writing data in the ECU through a direct connection with the control unit.

After proper connection to the ECU pins, the tool establishes communication with the microprocessor and the memory of the unit. The DFOX software identifies the ECU type and activates the corresponding access protocol.

In this way, various operations can be performed, including:

  • reading and writing microprocessor memory (micro / internal flash)
  • reading and writing EEPROM memory
  • access to external flash memory, when available
  • access to external EEPROM memory

This allows full extraction of the ECU content - including software, configuration data, and specific vehicle parameters.

One of the important features of DFOX is the automatic calculation and correction of the file checksum. This ensures that after modifying the software, the ECU will accept the new file without errors and without the risk of locking the control unit.

Additionally, the system performs extra safety checks before writing new software, which significantly reduces the risk of ECU damage.

Main operations that can be performed by DFOX in Bench mode

Working in BENCH MODE with DFOX allows the execution of a number of professional operations that are important for both diagnostics and tuning and repair.

Among the most commonly used functions are:

  • reading the original ECU software
  • writing a modified file (remap)
  • ECU cloning
  • software recovery in case of failure
  • data and configuration analysis

In many cases, this mode allows a full ECU backup, which is extremely important when working with modern control units. Having a backup enables system recovery in case of a failed write or software error.

ECU cloning and working with TRICORE processors

One of the important capabilities of DFOX in Bench mode is ECU cloning. This is a procedure in which the entire content of one control unit is transferred to another, for example when replacing a faulty ECU.

In modern ECUs with TRICORE TC17xx processors, cloning often requires adaptation of specific memory areas, including:

  • OTP zones (One Time Programming)
  • password-protected areas
  • processor identification data

DFOX offers specialized functions for the so-called clone service, which automatically adapt these areas so that the new ECU is fully compatible with the vehicle.

This significantly facilitates workshop operations and reduces the time for diagnostics and repair.

If you want to learn more about the capabilities of DFOX, receive professional consultation, or choose the most suitable configuration for your workshop, contact CarHack. We will assist you with expert information when selecting equipment.
