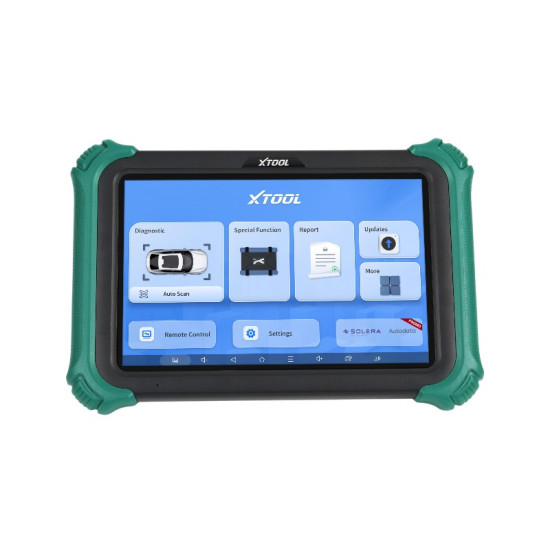

XTOOL Compass Master – Professional Automotive Diagnostic System

XTOOL Compass Master is XTOOL's flagship diagnostic platform, designed for professional workshops, automotive electricians, and diagnostic specialists. Positioned above the D8 and D9 series, Compass Master competes with high-end diagnostic tools from Autel, Launch, and Topdon while offering advanced diagnostics, coding, programming, and service functions in a single device.

Key Features

• 10.1" Full HD display (1920 × 1200)

• Android 10 operating system

• Octa-core processor (2.2 GHz + 1.8 GHz)

• 8 GB RAM / 128 GB storage

• Wireless and wired communication

• 6400 mAh rechargeable battery

• 8 MP camera

• CAN FD and DoIP protocol support

• Built-in J2534 Pass-Thru interface

• 3 years of free software updates

Complete System Diagnostics

Perform full vehicle diagnostics with the ability to read and clear fault codes, view live data, perform active tests, and access ECU information across all major vehicle systems, including:

• Engine

• Transmission

• ABS

• Airbag (SRS)

• BCM

• TPMS

• Air Conditioning

• Body Electronics

• ADAS Systems

• Hybrid and Electric Vehicle Systems

Supports a wide range of American, European, and Asian vehicle manufacturers, including Tesla.

Topology Mapping

The advanced Topology Mapping function provides a graphical overview of all control modules in the vehicle, displaying communication status and fault conditions in real time for faster diagnostics and troubleshooting.

Advanced Service Functions

Compass Master offers more than 40 maintenance and service functions, including:

• Oil Service Reset

• Electronic Parking Brake (EPB)

• Steering Angle Sensor (SAS) Calibration

• DPF Regeneration

• Injector Coding

• Throttle Adaptation

• Battery Registration (BMS)

• ABS Bleeding

• Suspension Calibration

• TPMS Reset

• Headlight Calibration

• Crankshaft Relearn

• Transmission Adaptation

• Language Change

• Transport Mode

• Seat Calibration

• Window Initialization

and many more depending on vehicle make and model.

IMMO & Key Programming Functions

Compass Master includes advanced immobilizer capabilities:

• Key Addition

• Key Deletion

• Remote Control Learning

• ECU/BCM Replacement Support

• PIN Code Reading on supported vehicles

Function availability depends on the specific vehicle and optional adapters used.

Coding & Programming

Online Coding

Supported brands include:

• Volkswagen

• Audi

• Skoda

• Seat

• BMW

• Mercedes-Benz

Offline Programming

Supported brands include:

• Ford

• Lincoln

• Mazda

J2534 Pass-Thru Programming

The integrated J2534 Pass-Thru interface enables communication with OEM software for factory-level ECU programming, software updates, and module replacement procedures.

ADAS Calibration Support

Compatible with the XTOOL ADAS calibration platform for calibration of:

• Front Cameras

• Radar Systems

• Lane Assist

• Adaptive Cruise Control (ACC)

• Front Assist

Advanced Tesla Diagnostics

One of the strongest advantages of Compass Master is its extensive Tesla coverage, including:

• Tesla Model S

• Tesla Model 3

• Tesla Model X

• Tesla Model Y

Functions include:

• Full system diagnostics

• Fault code reading and clearing

• Live data monitoring

• Service procedures

• Special functions and adaptations

Why Choose XTOOL Compass Master?

✔ Professional-level diagnostics
✔ Online coding and J2534 programming capabilities
✔ CAN FD and DoIP support
✔ 40+ service functions
✔ Advanced IMMO and key programming features
✔ Tesla diagnostics coverage
✔ ADAS calibration support
✔ 3 years of free software updates

XTOOL Compass Master is the ideal solution for modern workshops seeking comprehensive vehicle coverage, advanced diagnostic capabilities, coding functions, and OEM-level programming support in one powerful platform.
