OBDSTAR MARINEMASTER A+B+C+D - Marine Diagnostic Tool for Jet Ski/ Outboard/ Inboard/ Generator

OBDSTAR MARINEMASTER A+B+C+D - Marine Diagnostic Tool for Jet Ski/ Outboard/ Inboard/ Generator

FUNCTION DESCRIPTION

Functions

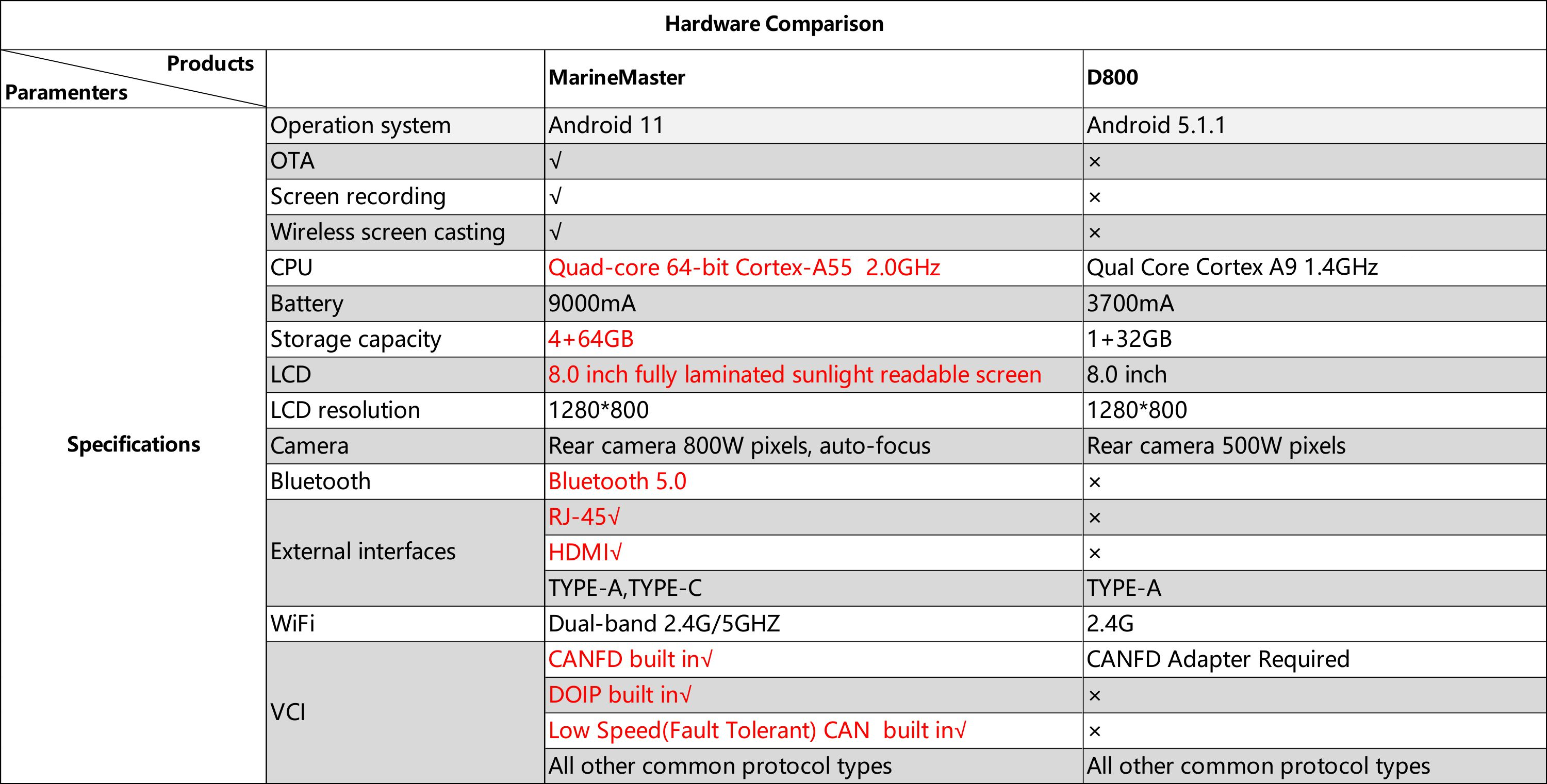

• Android 11 operating system with one-click OTA (Over-The-Air) updates ;
• Provide complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding, read working hours, Helm Setup, etc;
• Record and play back real-time flow, quickly and accurately locate sensor and component faults;
• Wi-Fi connection to the internet, one-click software upgrade;
• One-click remote function, OBDSTAR technical staff remote assistance;
• Built-in screen recording and wireless screen mirroring capabilities.

Advanced Functions

• The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with MarineMaster to make marine diagnosis more accurately and efficiently (some functions are only available for MarineMaster users to check for free);
• The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free;
• Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyze faults;
• Supports Auto Scan, BCM Simulator, Instance Setting, Maintenance Setting, Remote Control Reset, System Calibration, Torque Adjustment and other functions...

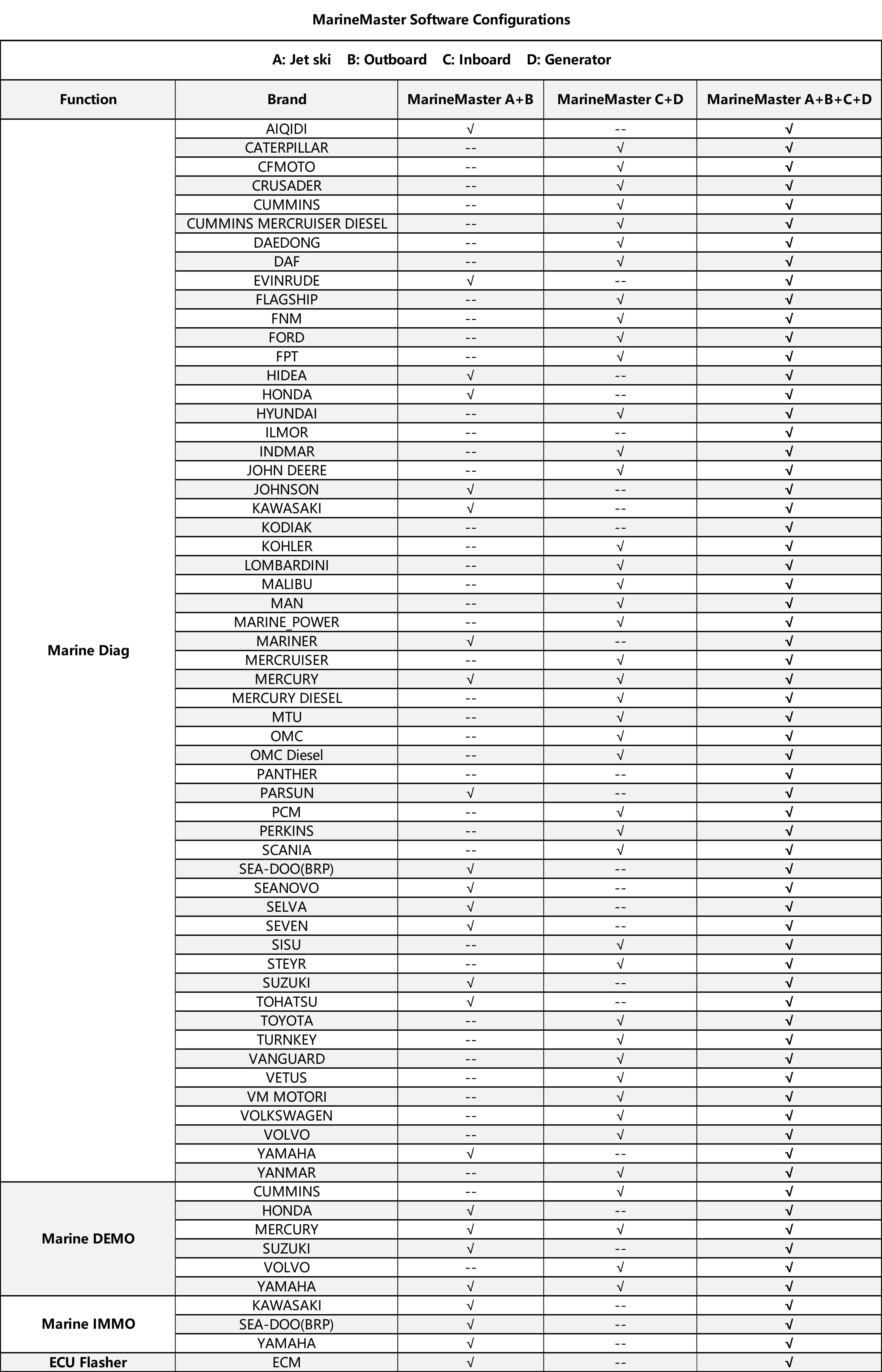

Supported Brands

• AIQIDI, CATERPILLAR, CFMOTO, CRUSADER ENGINES, CUMMINS MARINE, CUMMINS MERCRUISER DIESEL, DAEDONG, DAF MARINE, EVINRUDE, FLAGSHIP, FNM MARINE, FORD MARINE, FPT (Fiat Powertrain Technologies), HIDEA, HONDA, HYUNDAI SEASALL, ILMOR, INDMAR, JOHNSON, KAWASAKI, KODIAK MARINE, KOHLER, LOMBARDINI MARINE, MALIBU, MAN MARINE, MARINER, MARINE POWER, MERCRUISER, MERCURY, MERCURY DIESEL, MTU, PARSUN, PANTHER AIRBOATS, PCM Marine Engines, PERKINS, SCANIA MARINE, SEA-DOO(BRP), SEANOVO, SELVA MARINE, SEVEN MARINE, SISU, STEYR MOTORS, SUZUKI, TOHATSU, TOYOTA MARINE, TURNKEY, VM MOTORI, VOLKSWAGEN, VOLVO PENTA, YAMAHA, YANMAR...

More functions are under development...

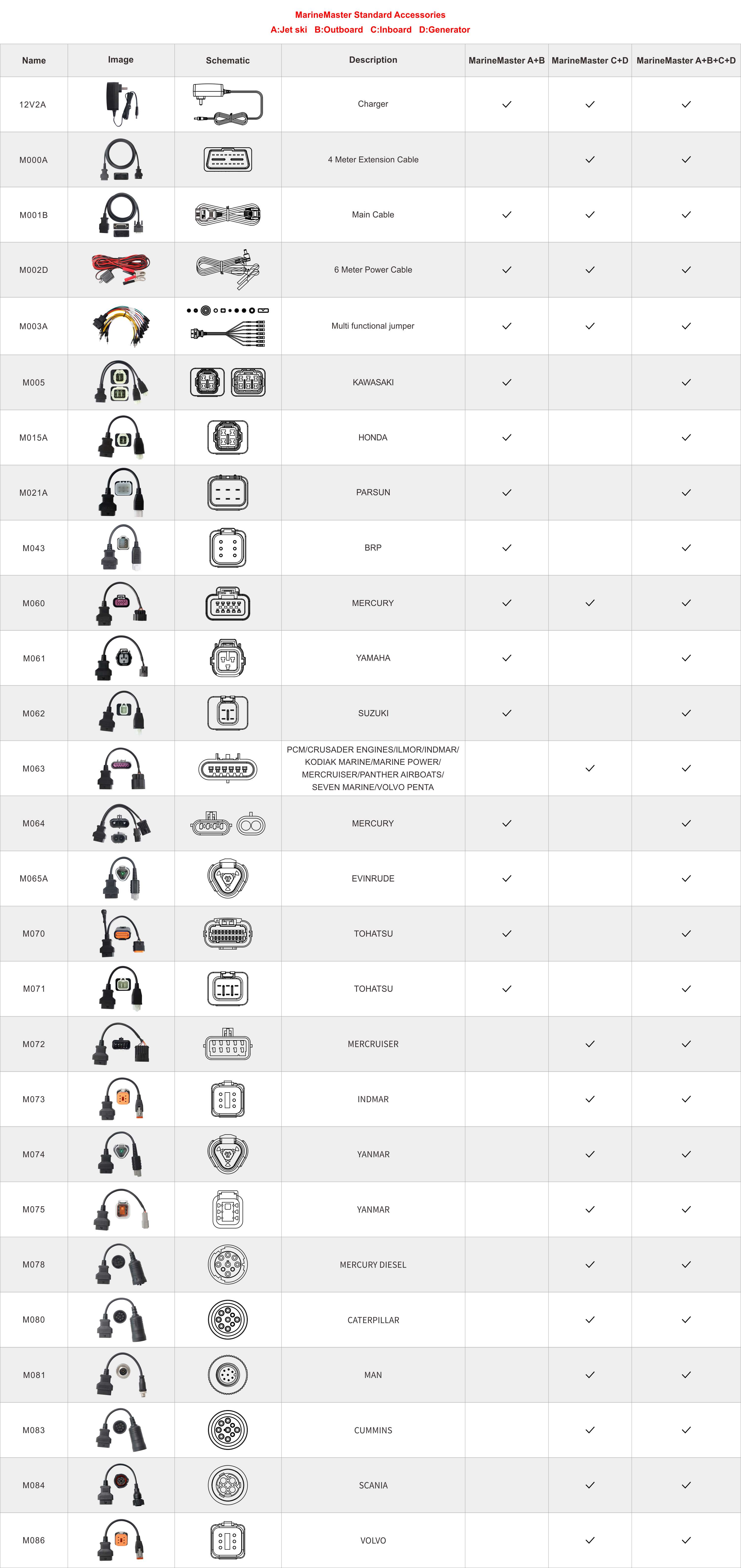

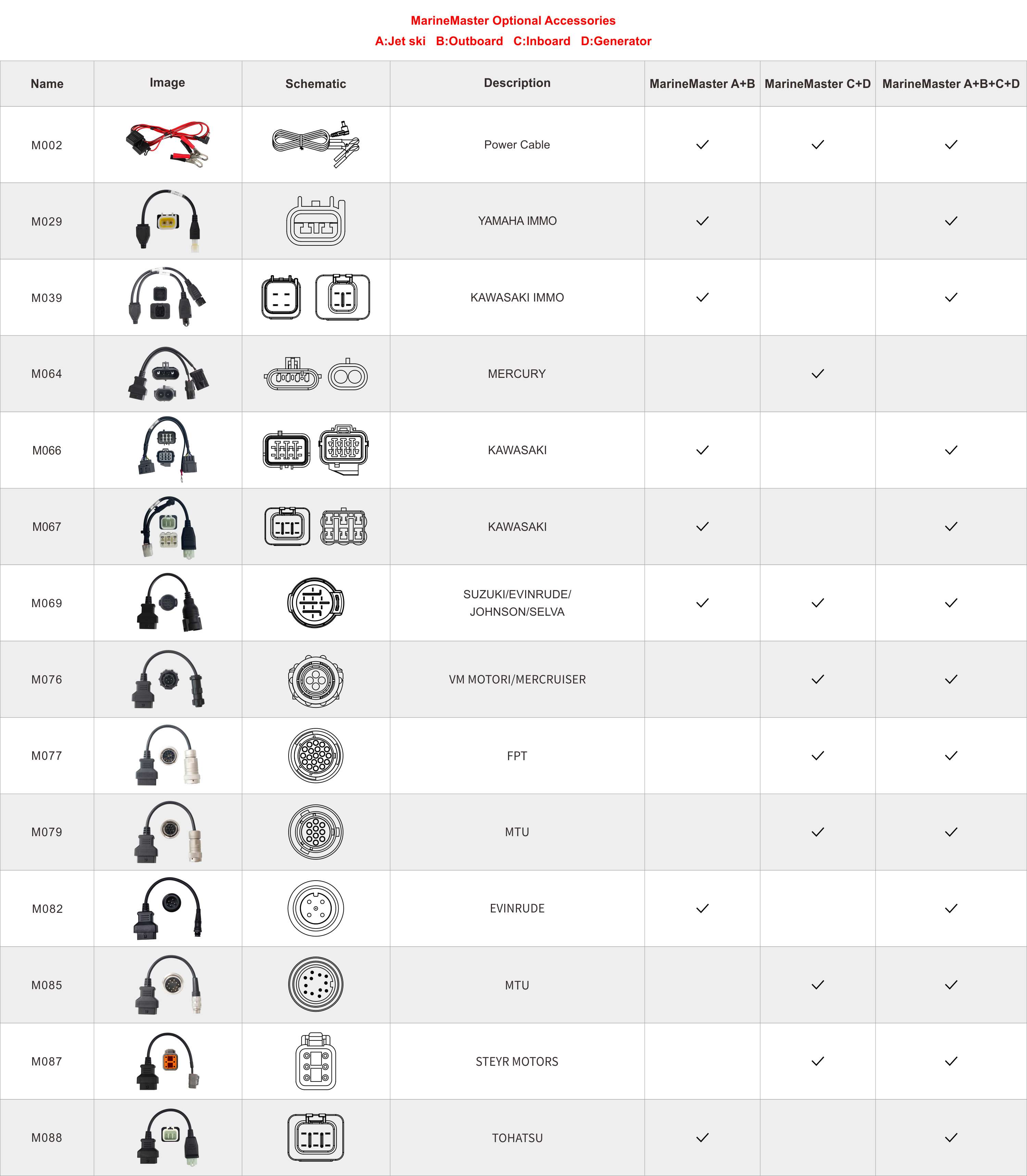

Configuration:

• A: Jet ski    B: Outboard    C: Inboard    D: Generator

  MarineMaster A+B+C+D: Jet ski, Outboard, Inboard, Generator
